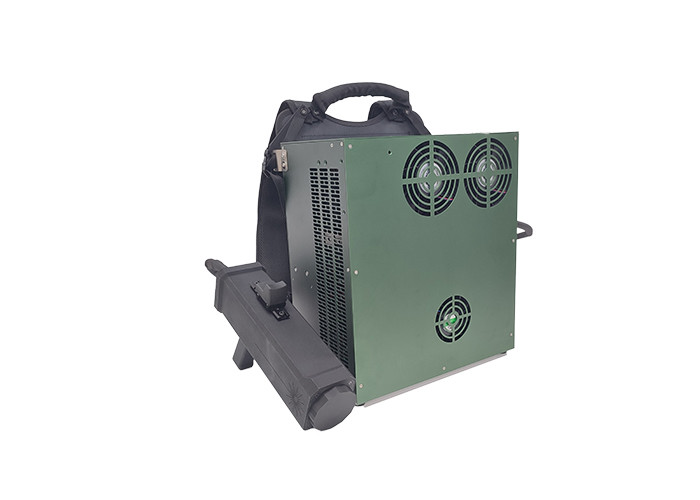

200W Single person backpack laser obstacle remover
Product introduction of laser obstacle remover:
Gongda laser backpack type 200W individual laser obstacle removal
machine adopts highly integrated design.
The self-developed compact 200W fiber laser+self-developed
refrigeration system+lithium battery module are integrated into a
backpack type obstacle removal system, and the weight of the entire
system is controlled within 20KG (except for the gun head). The
duration of a single 200W power operation is 5-10min (related to
the ambient temperature), and the total duration of a single
charging battery can support the full power operation of the system
to exceed 20min, and support the function of quick battery
replacement.
Product features of laser obstacle remover
1. Portable design, compact structure, overall weight of 20KG, can
be operated by one person.
2. The working distance can reach 100 meters.
3. The battery can be quickly replaced, and the single charge
support system can run for 20 minutes.
4. The operation is simple, flexible and efficient.
Product application of laser obstacle remover
1.Cleaning of foreign matters in the power grid (bird's nest,
honeycomb, floating objects)
2.Removal of foreign matters in high-speed railway operation
3.Remote foreign matter removal
4.Remove the tree block
5.Laser deicing
6.ammunition laser removal device.
Product parameters of laser obstacle remover
| Model | Backpack laser obstacle remover |
| Average power (W) | 200W |
| Operating mode | continuity |
| Central wavelength (nm) | 1080(±10) |
| Bandwidth 3dB (nm) | <6 |
| Long term power stability (%) | <3 |
| Beam quality M2 | <1.1@14um |
| Indicator red light power (uW) | >100 |
| Length of armored cable (m) | 2 |
| Battery voltage | DC 24V |
| Operating ambient temperature (℃) | 10~42 |
| Refrigeration mode | Internal circulation |
| Laser size (mm) | 400*350*200 |
| Net weight of laser (kg) | <20 |
| Single 500W power output duration (min) | 5~10min |
| Operation duration of single battery charge (min) | <20 |
| Handheld output head | Fixed focus/zoom |
Product appearance dimension
|
|
