100W Single person backpack laser obstacle remover
Product introduction of laser obstacle remover:
Gongda laser backpack type 100W individual laser obstacle removal machine adopts highly integrated design.
The self-developed compact 100W fiber laser+self-developed refrigeration system+lithium battery module are integrated into a backpack type obstacle removal system, and the weight of the entire system is controlled within 20KG (except for the gun head). The duration of a single 100W power operation is 5-10min (related to the ambient temperature), and the total duration of a single charging battery can support the full power operation of the system to exceed 20min, and support the function of quick battery replacement.
Product features of laser obstacle remover
1. Portable design, compact structure, overall weight of 20KG, can be operated by one person.
2. The working distance can reach 100 meters.
3. The battery can be quickly replaced, and the single charge support system can run for 20 minutes.
4. The operation is simple, flexible and efficient.
Product application of laser obstacle remover
1.Cleaning of foreign matters in the power grid (bird's nest,
honeycomb, floating objects)
2.Removal of foreign matters in high-speed railway operation
3.Remote foreign matter removal
4.Remove the tree block
5.Laser deicing
6.Detonation of dangerous ammunition/initiating explosive devices (military/police)
Product parameters of laser obstacle remover
| Model | Backpack laser obstacle remover |
| Average power (W) | 100W |
| Operating mode | continuity |
| Central wavelength (nm) | 1080(±10) |
| Bandwidth 3dB (nm) | <6 |
| Long term power stability (%) | <3 |
| Beam quality M2 | <1.1@14um |
| Indicator red light power (uW) | >100 |
| Length of armored cable (m) | 2 |
| Battery voltage | DC 24V |
| Operating ambient temperature (℃) | 10~42 |
| Refrigeration mode | Internal circulation |
| Laser size (mm) | 400*350*200 |
| Net weight of laser (kg) | <20 |
| Single 500W power output duration (min) | 5~10min |
| Operation duration of single battery charge (min) | <20 |
| Handheld output head | Fixed focus/zoom |

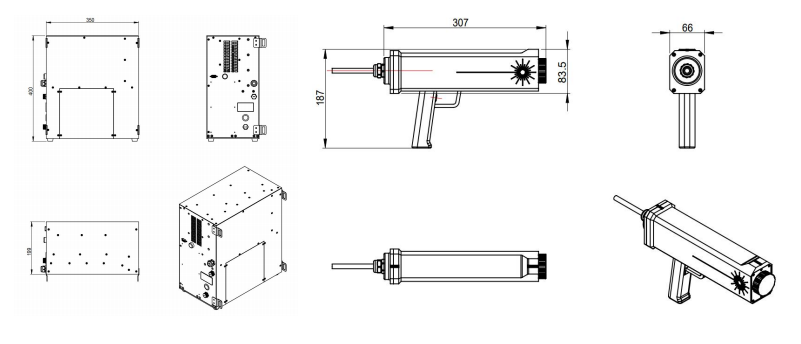

Product appearance dimension
|
|
