Shenzhen Gongda Laser Co., Ltd.
3 Years
| Ask Lasest Price | |
| Brand Name : | GD laser |
| Model Number : | YCFL-1500-all-in-one |
| Certification : | CE |
| Price : | Negotiate price |
| Payment Terms : | D/P, L/C |
| Supply Ability : | 200 sets/month |
| Delivery Time : | 10 work days |

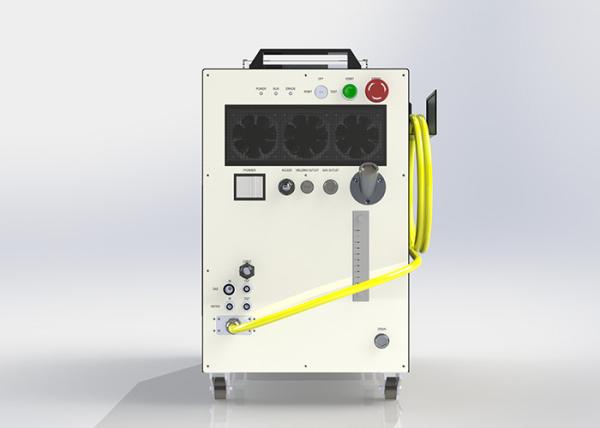

1500W Hand held all-in-one machine for cleaning, welding and cutting

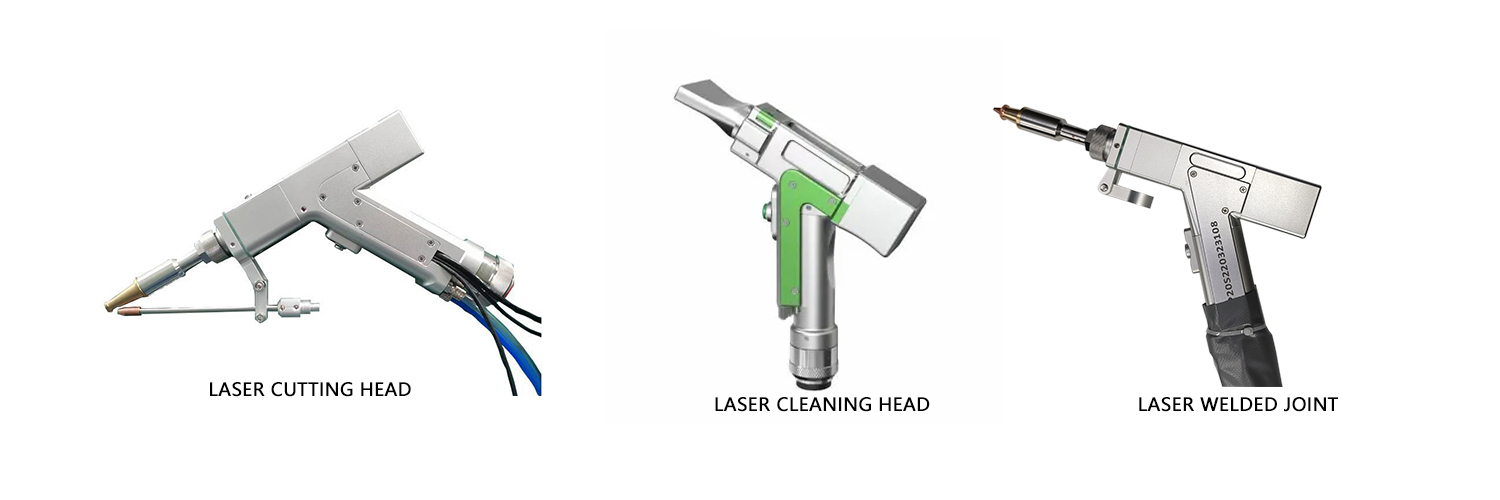

A device with triple functions of laser welding, cleaning and cutting. It can quickly and easily remove oil stain, rust and coating before welding, and remove debris and discoloration after welding, while cutting various plates. It can help customers achieve the best work efficiency conveniently and efficiently. You only need to replace the corresponding laser head when using it.
Product configuration
1000W-2000W power
5m/10m optical fiber
Optional welding wire machine
The welding nozzle can be replaced
Suitable for welding materials
It is applicable to the welding of thick materials, thin materials, high reaction materials and dissim- ilar metals without wire filling. It can weld metal materials such as stainless steel/ carbon steel/ aluminum/aluminum alloy/copper/ galvanized sheet.
Technical parameter
| MODEL | YCFL-1000-all-in-one | YCFL-1500-all-in-one | YCFL-2000-all-in-one |
| Average power(W) | 1000W | 1500W | 2000W |
| Working mode | Continuous/modulation | ||
| Maximum modulation frequency(KHz) | 20 | ||
| Central wavelength(nm) | 1080(±10) | ||
| Bandwidth 3dB(nm) | <6 | ||
| Long term power stability(%) | <3 | ||
| Beam quality M2 | <1.15@14um | <1.3@20um | |
| Indicated red light power(uW) | >100 | ||
| Output mode | Standard QBH | ||
| Optical fiber output core diameter(um) | 50(20/25/100) | ||
| Length of armor cable(m) | 5(Customizable) | ||
| Working voltage (VAC) | 220V | ||
| Rated power consumptlon(kW) | 3.5 | 6 | 7.5 |
| Working ambient temperature(℃) | 5~45 | ||
| Cooling mode | Internal circulation | ||
| Overall size(mm) | 310*726*721 | ||
| Net weight(kg) | 70±5 | 80±5 | 85±5 |
|
|
