    15W Nanosecond Pulse Laser Ipg UV Fiber Laser

    Ask Lasest Price
    Brand Name : GD laser
    Model Number : SHARP-NANO
    Certification : CE
    Price : Negotiate price
    Payment Terms : D/P, L/C
    Supply Ability : 200 sets/month
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

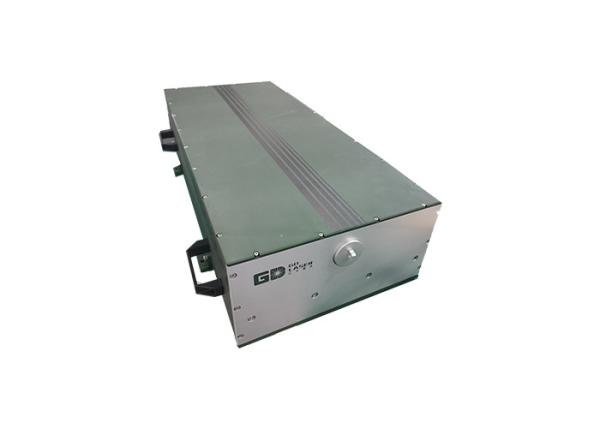

    15W Nanosecond Pulse Laser Ipg UV Fiber Laser

    15W UV Nanosecond pulse fiber laser


    Product introduction:


    Gongda laser has launched a 15w nanosecond ultraviolet pulse fiber laser with a wavelength of 355nm. It has the characteristics of small spot, narrow pulse width, multi wavelength, fast speed, good penetration, less heat, large output energy, high peak power and good material absorption. It is a cold light source and also known as "cold processing". It can be well absorbed by materials and has little damage to materials. It is a high-quality laser light source for precision material processing.


    Product features


    1. Wide repetition frequency coverage (10-6000khz);

    2. Superior beam quality (M ²< 1.5);

    3. Pulse width < 2ns, finer processing and smaller heat affected zone;

    4. Integrated design, convenient for equipment integration.


    Product application


    1. Semiconductor material processing: wafer cutting, scribing, micropore

    2. Glass processing: marking, internal carving, cutting and drilling

    3. FPC / PCB: cutting and marking

    4. Fine marking: electronic components, ceramics, plastics, etc


    Technical parameter


    NO.CharacteristicUnitSHARP-NANO-3/5/10/15/20/30/35/40
    1Mode of Operation-Pulse
    2Polarization State-Linear
    3Wavelengthnm355
    4Duration of the Each pulse in the Burstns<2
    6Polarization RatiodB>20
    7Nominal Average Output PowerW35101520303540
    8pulse energyuJ1010101520202020
    9Pulse Burst Repetition RateKHz10-100010-300010-300010-600010-600010-600010-600010-6000
    10RMS Power Stability%±1.5
    11Beam Quality (M2)<1.5
    12Beam Diametermm2.0
    13Beam Circularity%>90
    14AVCV220
    15Maximum power consumptionKW0.40.40.60.80.80.80.80.8
    16Cabinet sizemm700*306*161
    17Cooling modeWater-cooling

    Product size
