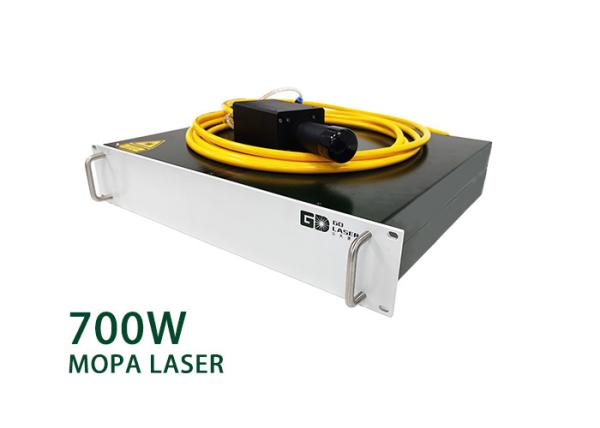

700W high power water cooled MOPA pulsed fiber laser

Product introduction:

We are the first 1000 W MOPA laser source manufacturer in China.We OEM to some famous integrator and laser source manufacturers.

High power MOPA pulse fiber laser is a high-power fiber laser using direct electrical modulation semiconductor laser as seed source (MOPA). It has perfect laser characteristics and good pulse shape control ability. Compact structure, convenient operation, overall maintenance free, and can be directly integrated into user equipment. The pulse frequency and pulse width are independently controllable. Through the adjustment and matching of the two laser parameters, it can achieve constant peak power output and can be applied to a wider range of marking substrates. The output power up to 700 makes it particularly advantageous in thin metal cutting, laser cleaning and other applications.

Product features

1. The working pulse width is independently adjustable, with a large adjustable range: 10-500ns

2. Independently adjustable working frequency, high PRF: 10000khz

3. Support the frequency conversion function in the light output state

4. Single pulse energy > 1.5mj, support single pulse energy customization

5. Excellent output beam quality, support customization

6. Both pulse and CW laser output modes

7. Stable output in high temperature and low temperature environment, high stability and reliability

Product application

1. Laser cleaning

2. Lug cutting

3. Metal deep carving and flight marking

4. Sheet metal welding and cutting

5. Ceramic Scribing and resistance fine adjustment

6. Anode stripping and coating stripping

7. Dicing of photovoltaic single crystal / polysilicon

8. Continuous processing of high reaction materials, etc

Technical parameter

Product size

Shenzhen Gongda Laser Co., Ltd. is a young high-tech intelligent manufacturing enterprise, established in Shenzhen, the capital of advanced manufacturing in the world. The company's main business is concentrated in the upstream of the laser industry intelligent equipment manufacturing industry. Engaged in the R&D, production and sales of "advanced short-wavelength fiber lasers" and "laser precision processing solutions". We are a laser company focusing on the R&D, production and application of medium and high power short wavelength (green and ultraviolet) all-fiber lasers. The company's founding team has 16 years of experience in R&D and application of fiber lasers, and has developed various types of high-power Fiber laser can provide local and international laser equipment manufacturers with superior performance laser solutions, and is committed to becoming an international first-line and domestic leading fiber laser supplier.
