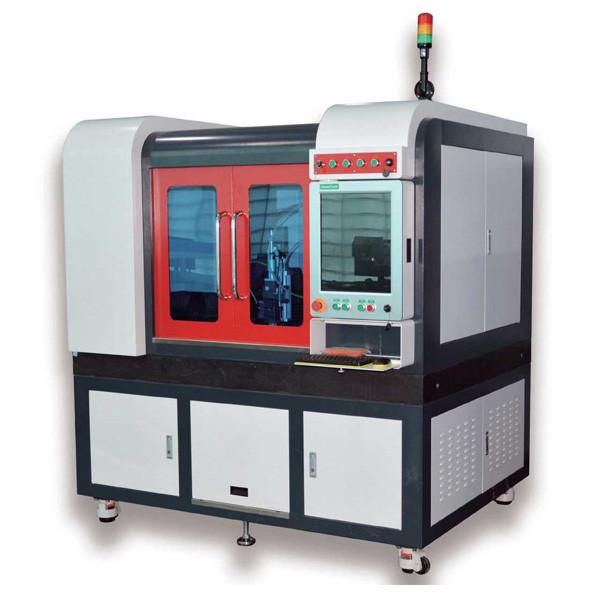

    1064nm 0606L Fiber Precision Laser Cutter 450w-2200w Optional

    Ask Lasest Price
    Brand Name : GD laser
    Certification : CE
    Price : Negotiate price
    Payment Terms : D/P, L/C
    Supply Ability : 100 sets/month
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

    1064nm 0606L Fiber Precision Laser Cutter 450w-2200w Optional

    0606L Fiber precision Laser Cutting Machine


    1. Product introduction


    Adopt gantry type structure, linear motor, guide rails adopt fully enclosed protection, reduce dust pollution;
    Double-side drive with linear motor, high precision, high acceleration, fast speed;
    Laser processing is a non-contact flexible processing, not affected by the shape of the workpiece, can process arbitrary graphics;


    2. technical parameter


    ModelDPE-0606L-F1000-M
    Laser wavelength1064nm
    Laser power450w-2200w Optional
    Cutting range600mm*600mm
    Positioning accuracy±0.01mm
    Transfer method

    Double drive linear motor

    Cutting speed and thicknessDepending on the specific material
    Optimal operating environmentTemperature 0-40°C
    Electricity demand3x380V±10% 220V±10%
    Cooling method

    Water cooling

    Continuous operating time24 hours

    Weight

    <1.5T
    Dimensionsabout 1850*1400*1900 mm
    Maximum operating speed80m/min
    Maximum acceleration1G
    Z axis travel100mm


    3. Application display
