Brand Name : | GD laser |
Certification : | CE |
Price : | Negotiate price |
Payment Terms : | D/P, L/C |
Supply Ability : | 100 sets/month |
Delivery Time : | 10 work days |

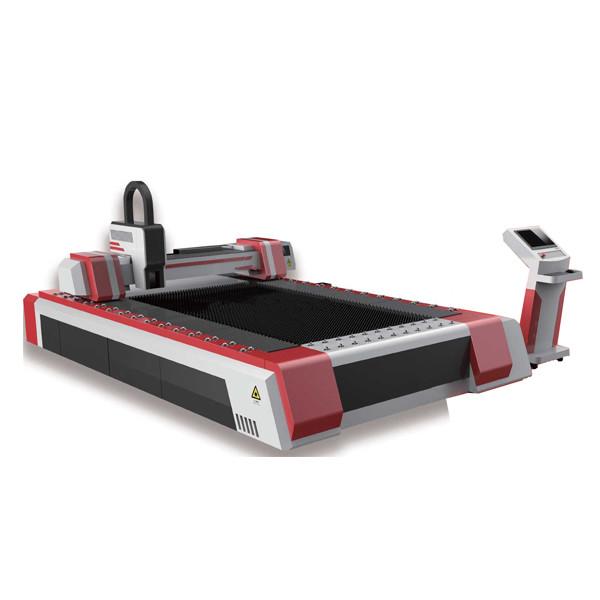

6020 Single table fiber laser cutting machine
1. Product introduction
2. technical parameter
Model | DPE-F6020-(500W-6000W) |
Laser source type | Fiber source |
Laser wavelength | 1070nm |
Laser power | 500W-6000W |
Cutting range | 3000mmx1500mm |
Minimum line width | < 0.1mm |
Transfer method | Precision rack dual drive |
Cutting speed and thickness | Depending on the specific material |
Optimal operating environment | Temperature0-40oC |
Electricity demand | 380V/50HZ |
Cooling method | Water cooling |
Continuous operating time | 24 hours |
Weight | 8500kg |
Dimensions | about 6500mmx2700mmx2000mm |
Maximum operating speed | <120m/min |
Maximum acceleration | 1.2G |
X/Y positioning accuracy | 0.03mm |

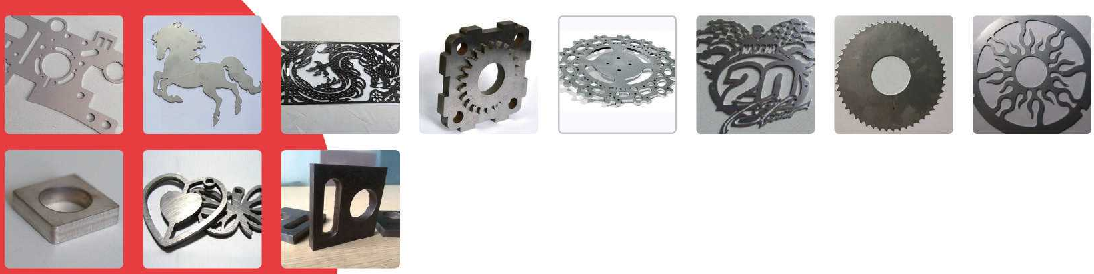

3. Application display
![]() |
