    1070nm Single Table Fiber Laser Cutter 380V / 50Hz Electricity Demand

    Ask Lasest Price
    Brand Name : GD laser
    Certification : CE
    Price : Negotiate price
    Payment Terms : D/P, L/C
    Supply Ability : 200 sets/month
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

    1070nm Single Table Fiber Laser Cutter 380V / 50Hz Electricity Demand

    Single table fiber laser cutting machine


    1, Product introduction



    2, technical parameter


    ModelDPE-F3015DPE-F4015DPE-F4020DPE-F6020
    Laser source typeFiber sourceFiber sourceFiber sourceFiber source
    Laser wavelength1070nm1070nm1070nm1070nm
    mnw.mnnwRnnA/-AAAAA/RonA/-AnnnA/
    Laser output power
    Cutting range3000x1500mm4000x1500mm4000 x2000mm6000x2000mm
    Minimum line width< 0.1mm< 0.1mm< 0.1mm< 0.1mm
    Transfer methodPrecision rack dual drivePrecision rack dual drivePrecision rack dual drivePrecision rack dual drive
    Cutting speed and thicknessDepending on the specific materialDepending on the specific materialDepending on the specific materialDepending on the specific material
    Repeatability±0.02mm±0.02mm±0.02mm±0.02mm
    Machine operating temperature0 ~ 40°C0 ~ 40°C0 ~ 40°C0 ~ 40°C
    Electricity demand380V/50Hz380V/50HZ380V/50Hz380V/50Hz
    Cooling methodWater cooling

    Water cooling

    Water cooling

    Water cooling
    Continuous operating time24 hours24 hours24 hours24 hours
    Weight4800kg4800kg4800kg4800kg
    Dimensions4700mmx2700mm x2000mm5700mm x2680mmx2000mm5700mm x 3180mm x 2700mm7900mm x 2180mm x 2700mm
    Maximum operating speed120m/min120m/min120m/min120m/min
    Maximum acceleration1.2G1.2G1.2G1.2G
    X/Ypositioning accuracy0.03mm0.03mm0.03mm0.03mm
    Minimum slit width0.15mm0.15mm0.15mm0.15mm

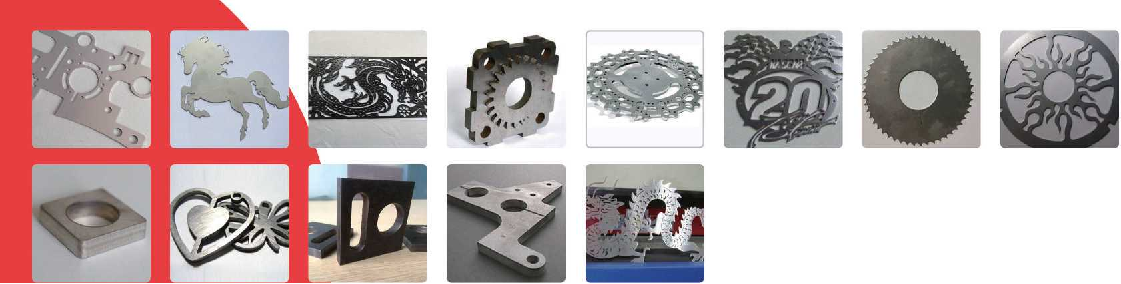

    3. Application display
